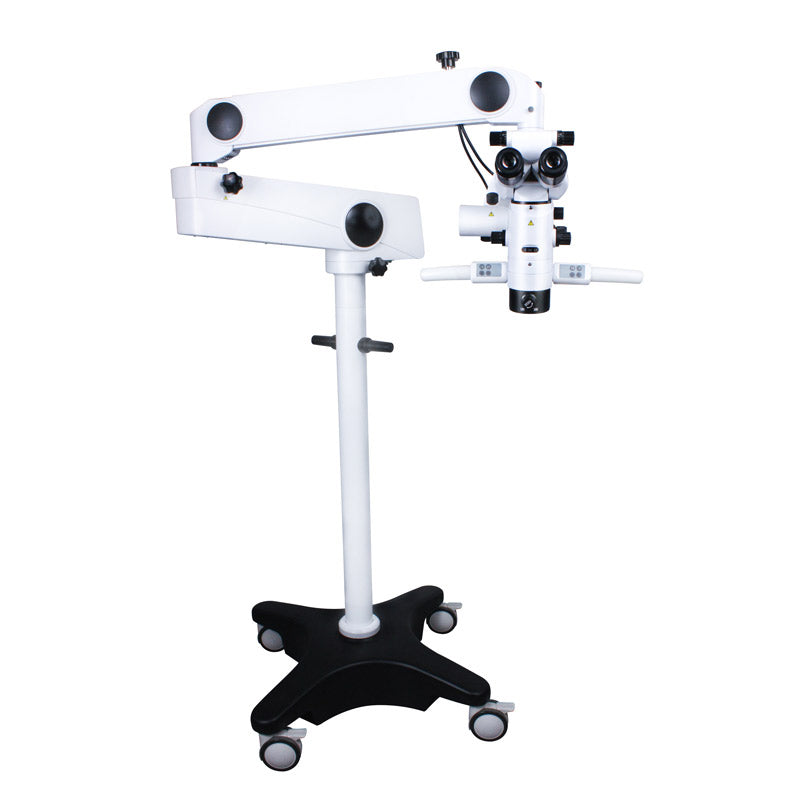

ASOM-520 Surgical Microscope
ASOM-520 Surgical Microscope
Performance characteristics
⚫ Long life LED light source,Four levels of filters: normal light spot, small light spot, yellow filter, green filter
⚫ Built in balanced power switch,Lift the light source to automatically extinguish
⚫ lmported air spring cantilever balance system,120 ° balance boom, The lens can rotate 360 · X-Y-Z in three dimensions:Damping adjustable fully balanced C arm
⚫ Choose a three joint 360 ° rotating stereo assistant mirror to observe at any angle and position at 90 and 180 · with the main mirror, with image orientation adjustment function
Technical indicators
⚫ Eyepieces : Magnification 12.5x/10x, pupil distance adjustment range 53 ~ 76mm,
visual acuity adjustment + 6D ~ - 6D
⚫ Binocular: 30°-90° variable tilt angle binocular tube or 90° binocular primary lens +optical extender + beam splitter + tilt function (three-in-one structure)
or 0°-200° variable tilt primary lens
⚫ Continuous stepless multiplication: Zoom ratio 1:6 Magnification: 2.3X-27X
⚫ llumination :LED cold light source lighting brightness continuously adjustable, high brightness. Maximum illumination of object surface 2 60000lx
⚫ Focallength: F=250mm(175/200/300/350/400mm Optional) Fine tuning range 215mm.
⚫ Big zoom objective(optional) : F= 180-300mm or F200-320mm, super zoom F=200-450mm .
⚫ Selection and purchase: Tilting device (pendulum), SLR camera, micro single, mobile phone
⚫ Optional Video System : Built-in HD video camera system,Frequency storage mode:Video data can be stored on memory card, Equipped with HDMI/DVI and other HD video signal output ports, real-time operation broadcast, Equipped with a multi-function handle,one key to take photos, record videos, and replay pictures
