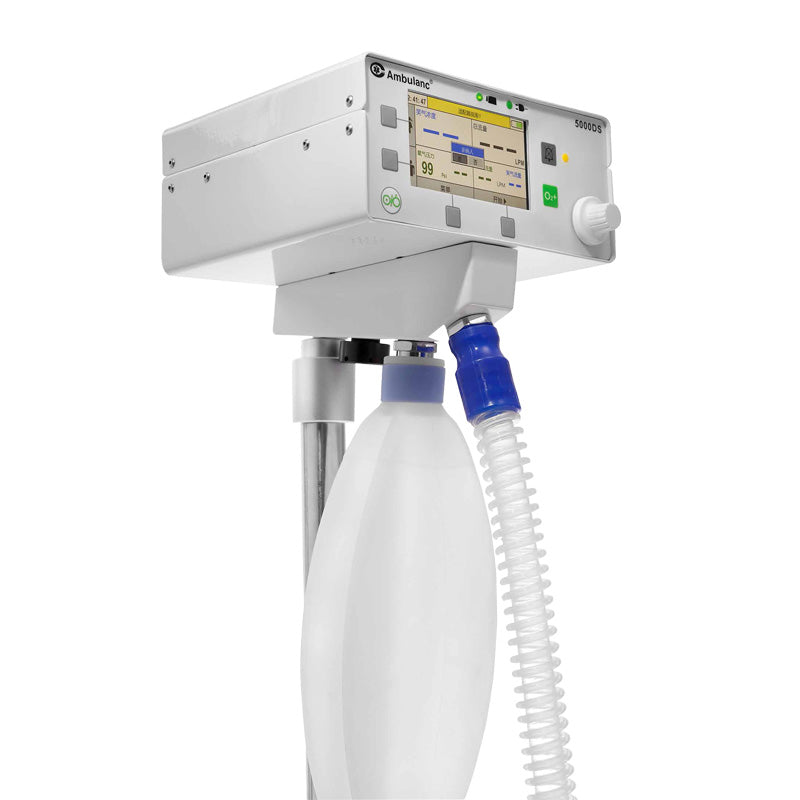

AII5000DS Nitrous Oxide Sedation System
AII5000DS Nitrous Oxide Sedation System
Features
Electromagnetic valve for precise controlling; Fast set up button for child and adult mode; Flexible and durable knob for easy operation; Real-time parameter display with high quality TFT screen; Audio and visual alarm system;
Specification
⚫ Dimensions (W x H x D) : 20x 20.7x23.3 (cm)
⚫ Weight:3.5kg
⚫ Mixed Gas Outlet Diameter: 7/8" Nominal (22mm)
⚫ Oxygen Inlet: Male DISS Male DISS 9/16"
⚫ Nitrous Oxide Inlet: Male DISS Male DISS 3/4"
⚫ Nitrous Oxide Mixed Ratio Range: 0-70%
⚫ Oxygen Flow Range: 1.0-18 LPM
⚫ Nitrous Oxide Flow Range: 0-12.6 LPM
⚫ Total flow adjustment range : 1-12 L/min (for children) 1-18 L/min (for adults)
⚫ Inlet Pressure (each gas): 50-55 psi
⚫ Resuscitator Connector: Male DISS Male DISS 9/16"
⚫ Resuscitator Connector Flow: 100 LPM Oxygen
⚫ Power Requirements: AC 90-264V; 50-60 Hz
⚫ Display: 3.7 inch TFT screen Battery: 4 hours
Standard configuration
⚫ Main unit, Bag tee, Scavenging Circuit
