A5 Children Dental Chair

A5 Children Dental Chair

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out

●CE approved
●Lovely cartoon mini children dental chair unit
●PU Leather cushion
●Build-in floor box or external floor box
●With 1 dentist stool for free

Bulk Price

Qty.Range(unit) Price(unit) Discount
2 $3,050.00  3%
3 $2,950.00  6%
5 $2,850.00  10%
10 $2,750.00  13%

Voltage:

220V, 50Hz
110V, 60Hz

Plug:

USA Plug
Euro Plug
Uk plug
Australia Plug

Handpiece Connection:

4 Hole (3pcs)
2 Hole (3pcs)
6 hole fiber Tube(1pcs) & 4 hole(1pcs) & 2 hole(1pcs) + $100.00
6 hole fiber Tube(1pcs) & 4 hole(2pcs) + $100.00
6 hole fiber Tube(1pcs) & 2 hole(2pcs) + $100.00
6 hole fiber Tube(2pcs) & 4 hole(1pcs) + $130.00
6 hole fiber Tube(2pcs) & 2 hole(1pcs) + $130.00

Floor Box:

Build-in Floor Box
External Floor Box
Suction System for Saliva Ejector:
Normal Suction System Design
Central Suction System Design(Without Place Selection Valve) + $60.00
Central Suction System Design (include Place Selection Valve) + $180.00

Options:

Build-in Sclaer (USD-N2) + $140.00
Build-in Sclaer(UDS-N2 LED) + $170.00
Build-in LED Curling light ( WOODPECKER LED.Q) + $70.00
Endoscope System (MD-1500A Wired Unit) + $399.00
Implant Surgery ECG Patient Monitor 12.1 inch(TR-ECG01) + $650.00
Fiber Optic High Speed Handpiece With Quick Coupling(SUN-LC4-KP9000) + $280.00
High&Low Speed handpiece Kit (TR300) + $160.00
Build-in Micromotor(C-PUMA-INT) + $500.00
Air compressor (TR-1EW-32) + $260.00
Suction Machine (TR-YP606A1,Support 1-2 PCS Dental Chair) + $750.00
PU Assistant's Stool (1 set) + $75.00
PU Luxury Assistant's Stool (1 set) + $218.00

Standard Configuration

1.24V DC import motor× 2 sets
2.12V inlet solenoid valve×2 sets
3.3-way syringe(cold/hot)×2 sets
4.Touch control system doctor element×1 set
5.Touch control system assistant element×1 set
6.Salivary system×1set
7.Led x-film viewer×1set
8.Water storage control system×1set
9.Instrument disc gas locking position device×1set
10.Safety emergency stop switch
11.Silicone protective cover for the doctor element and assistant element instrument tray
12.Detachable sterilized ceramic spittoon×1set
13.Phlegm flushing and water supply control system×1set
14.PU leather cushion×1set
15. Multi-functional foot pedal×1set
16. LED oral lamp×1set
17. Luxury dentist stool×1set
18. Mobile lifting trolley×1set
19. 3-in-1 tissue box ×1set

Different Perspective Display

Dental Chair

 Dental Chair

 Dental Chair

Features

Stool

stool

Luxury Assistant's Stool
(Option)
1)Seat 360 Rotation
2)Seat Height Adjustment:About 520mm To 660mm
3)Armrest 360 Rotation
4)Armrest Height Adjustment

stool

Dentist Stool

1)Seat 360 Rotation
2)Seat Height Adjustment:About 510mm To 630mm
3)Backrest fixed
4)Backrest Backward Adjustment

stool

Assistant Stool
(Option)

1.Seat 360 Rotation
2.Seat Height Adjustment:About 460mm To 580mm
3.Backrest fixed

Patient Chair

Patient Chair     Patient Chair     Patient Chair

1.Motor driven chair , 24V/DC motor.
2.Designed for children, PU or microfiber leather cushion comfortable skin-friendly leather,ergonomic design of the seat cushion, stylish appearance, comfortable lying, durable.
3.Patient chair (chair cushion) minimum height: 500mm,maximum height: 800mm,backrest angle -5゜-75゜.
4.Length of cushion: 900mm, widest of cushion: 480mm, length of backrest: 380mm, widest of backrest: 450mm.
5.The load capacity of the patient chair is ≦125Kg.
6.The frame of the chair is made of plastic,durable and rust free.

Patient ChairChair height and backrest adjustment

It can be controlled by doctor element, assistant element and foot control.

Patient Chair

 Water, gas and electricity one button switch behind the chair

The connection design of side box and chair

 The connection design of side box and chair

Doctor Element

Doctor Element

Mobile lifting trolley type doctor element

1.Touch control system panel,dentist can operate with gloves
2.6 handpiece holders
3.3-way syringe 1pc
4.Handpiece tube 3pcs
5.12V led x-film viewer
6.Handpiece tube water and air regulation valve
7.The height of the car can be adjustable:73cm-93cm

Doctor Element

Built-in DC 24V X-ray film viewer

Closer to doctors and patients for convenient observation and communication, will not be damaged, DC power supply luminous uniform longer life.

Doctor Element

6 Handpiece holder

3 way syringe1pc

Handpiece tube 3pcs

Doctor ElementHandpiece tube water and air regulation valve under the element

 Doctor element's control panel

Doctor element's control panel

1.Patient chair reset:Press the "RESET" button to lower the patient's chair to the lowest level and tilt the back to the front. When the patient chair is running, if other function keys are pressed, the function key will stop automatically!
2.Cleaning reset position:When the doctor finishes his work, press the C key and the chair will activate the automatic cleaning and resetting function. When it is pressed, the chair frame rises to the highest level and the backrest tends to the front. Then the spittoon starts to flush automatically for 5 minutes. After 5 minutes, the flush stops and the seat drops to the lowest level. Note: If other function keys are pressed during the operation of C key, the function key will stop automatically!
3.Oral lamp switch:Press this button,Oral lamp on; Press again, power off.
4.First aid chair position: Press this button, the patient's chair will rise to the highest position, lean back and keep the highest position flat.
5.X-Ray film viewer switch:Press this button,Open the film viewer ; press the key again,power off.

6.Patient chair backrest backward adjustment:Long press the button, the patient chair will run according to the icon, release the button to stop the action immediately.
7.Patient chair rise:Long press the button, the patient chair will run according to the icon, release the button to stop the action immediately.
8.Patient chair down:Long press the button, the patient chair will run according to the icon, release the button to stop the action immediately.
9.Patient chair backrest forward adjustment:Long press the button, the patient chair will run according to the icon, release the button to stop the action immediately.
10.Thermostatic hot water switch:Press the button, thermostatic water heater starts, hot water to 40℃±5℃. When the water temperature drops, the water heater will work automatically (the light flashes during the hot water process, and the light will be on after the hot water reaches the set value); Press the change button again to turn off the water heater (the indicator light is off).
Note: Hot water is only available for mouthwash and assistant rack three use spray gun water! (Water supply must be connected before using the water heater to prevent short circuit caused by dry burning of the water heater).

11.Spit position (gargle memory position):Press this button,Water supply faucet water supply, patient chair back immediately run to the front position, in the case of oral light channel, oral light off, press the key again, sputum flushing faucet water, patient chair back to the previous position, oral light, sputum flushing water stop.
12.Trolley rise: Long press the key to run to the motor maximum stroke stop, when the rise process to release the key or press other keys to stop the function.
13.Trolley down: Long press the key to run to the minimum stroke of the motor stop, when the process of dropping the key or press other keys to stop the function.
14.Gargle water supply:Mouthwash water faucet water supply to the set time will stop; If you press this button again during the water supply, the water supply will be stopped.
15.Spittoon flush switch:Press this button,flush the spittoon.
16.Set button:a)Gargle water supply timeset;b)Patient chair 9 memory positioning set.
17.Water and air pressure values.

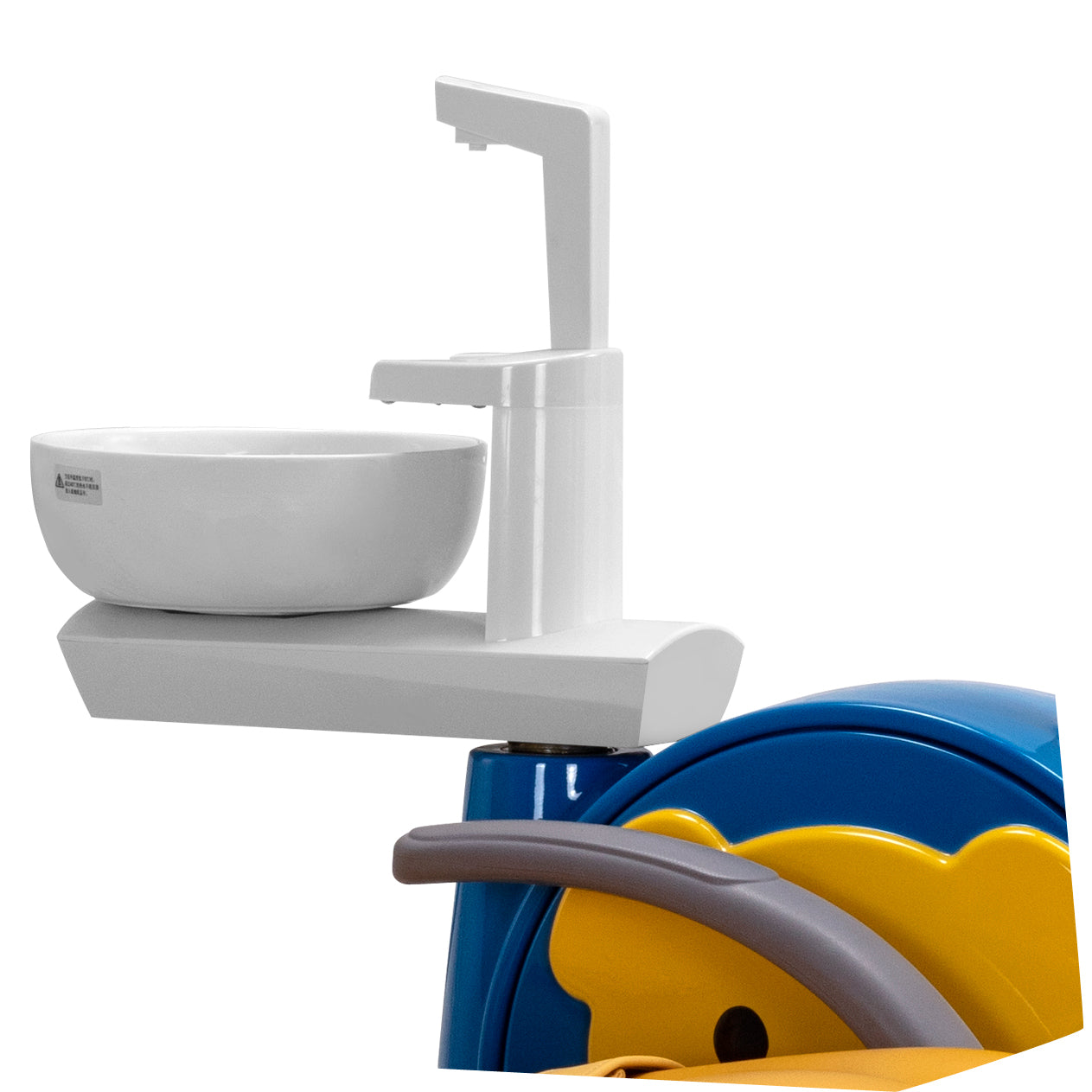

Assistant Element& Spittoon

Assistant Element& Spittoon

Assistant element control panel

1.Patient chair backrest backward adjustment
2.Patient chair backrest forward adjustment
3.Patient chair rise
4.Patient chair down
5.Patient chair reset
6.Thermostatic hot water switch
7.Gargle water supply switch
8.Spittoon flush switch

Sidebox Design

Sidebox DesignCartoon box design soo cute

Sidebox DesignPure water supply system-single water bottle 1L

With Air lock control

Sidebox DesignExternal floor box design

You can choose build-in floor box or external floor box.

Sidebox DesignMultifunctional foot switch

Stainless steel pipe,firm and durable.

Paper cup bucketPaper cup bucket
